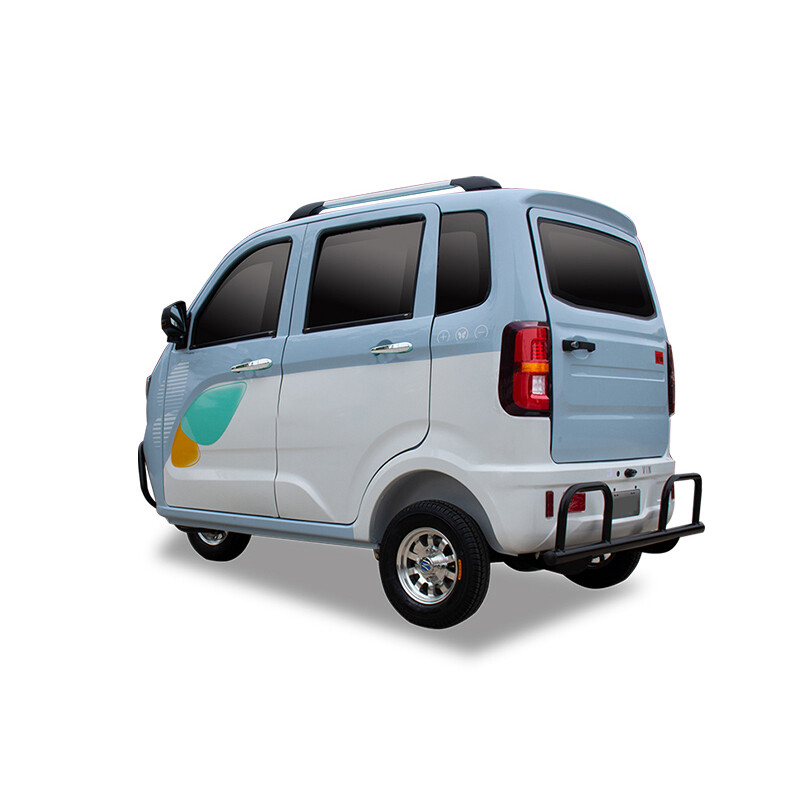

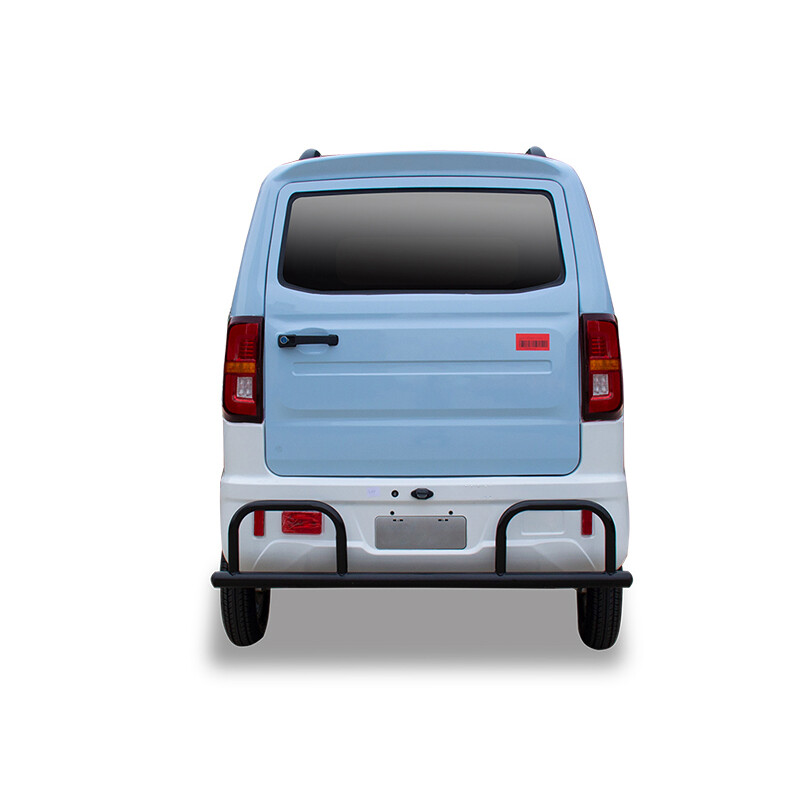

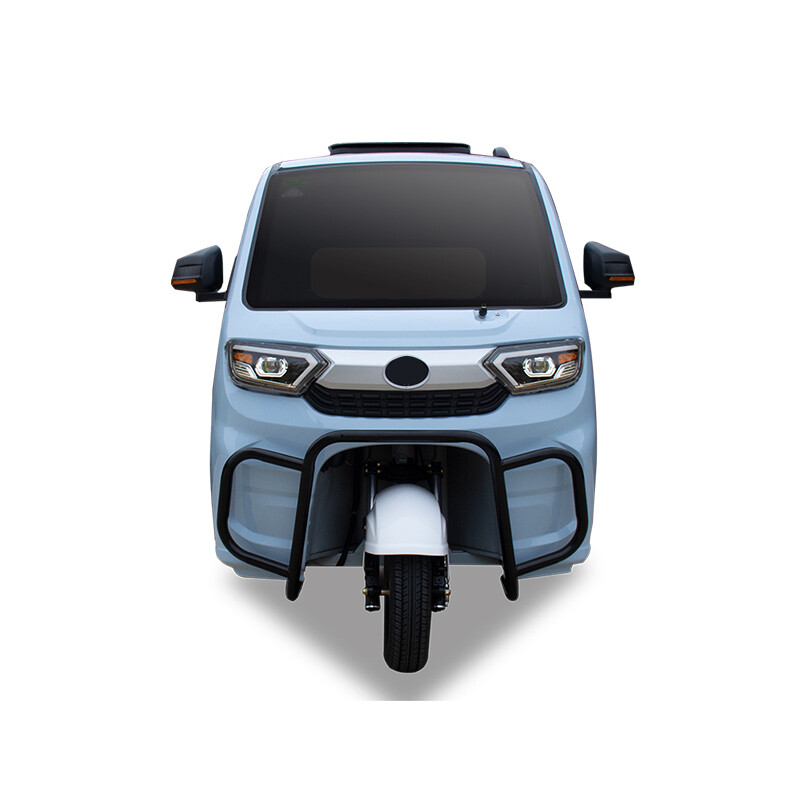

Closed Cabin Town Outing Electric Passenger Tricycle

Product overview

Short Specification

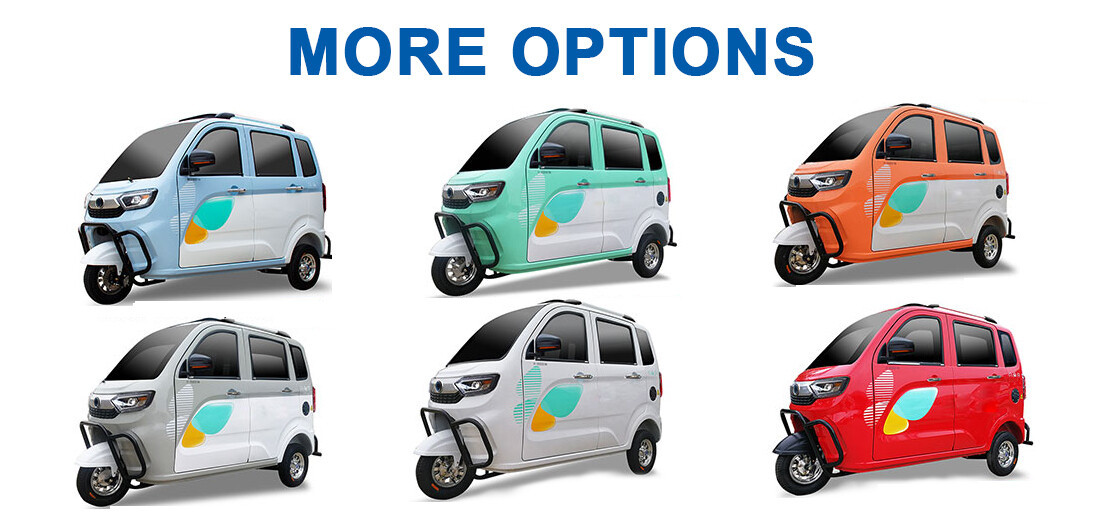

Optional colors	White/Black、Gray/Black、Green/White	White/Black、Gray/Black、Green/White
L×W×H(mm)	2565×1275×1615	2565×1275×1615
Wheel base(mm)	1855	1855
Wheel track(mm)	1150	1150
Minimum ground clearance（mm）	150	150
Minimum turning radius（m）	3.2	3.2
Curb weight(kg)	333	333
Max speed（km/h）	30	30
Max slope of climb(%)	20	25
Battery	lead-acid：60V/45-52AH	lead-acid：72V/45AH
Motor, electric power control(w)	60V1000W	72V1200W
Driving mileage at efficient speed(km)	60	70
Charging time（h）	8	8
Body structure	5 doors 3 seats	5 doors 3 seats
Front shock absorber	Hydraulic shock absorption	Hydraulic shock absorption
Rear shock absorber	Spring suspension	Spring suspension
Front/Rear tyre	4.00-10 Tubeless	4.00-10 Tubeless
Rim type	Aluminum Alloy	Aluminum Alloy
Front/Rear brake type	Front Disc/rear Disc	Front Disc/rear Disc
Parking brake	Hand brake	Hand brake
Rear axle structure	High-Low Rear axle	High-Low Rear axle
Glass lifts	Front electric /Rear Hand lift	Front electric /Rear Hand lift
Seat	Foam Seat	Foam Seat
Front headlight	LED	LED
40HQ	9 units	9 units
20GP	2 units	2 units
