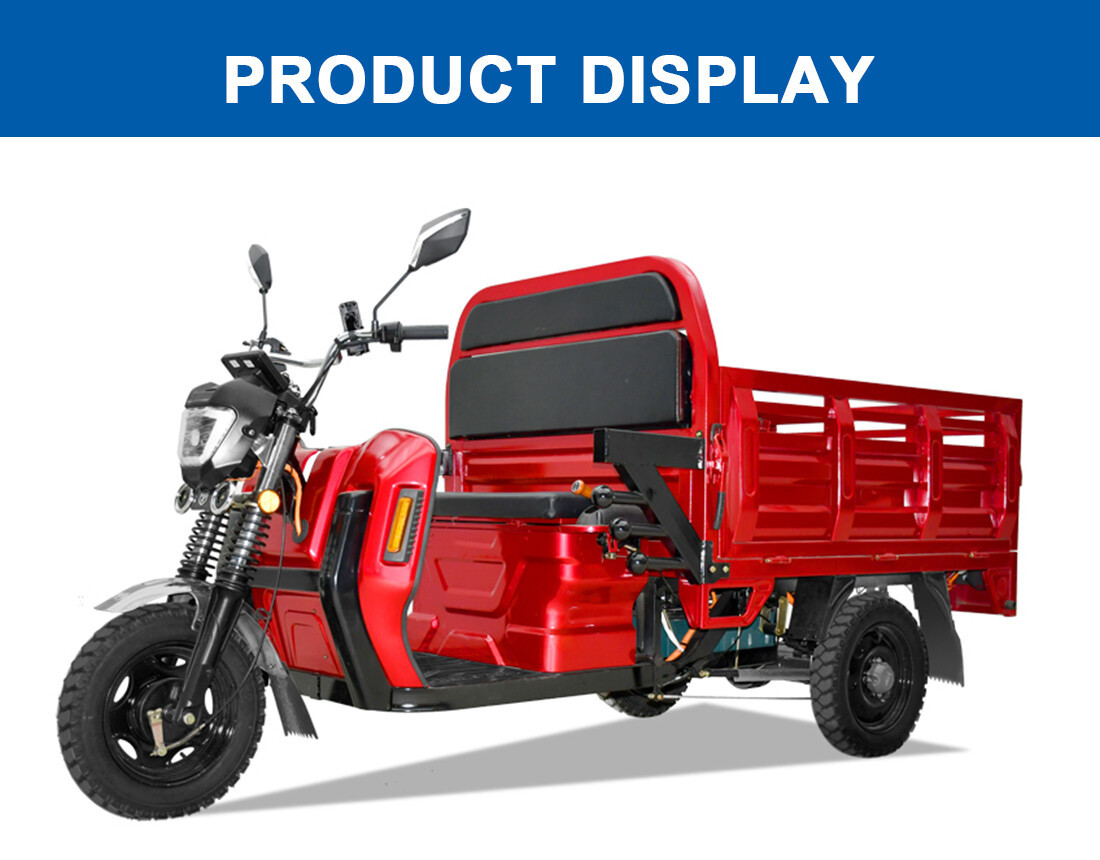

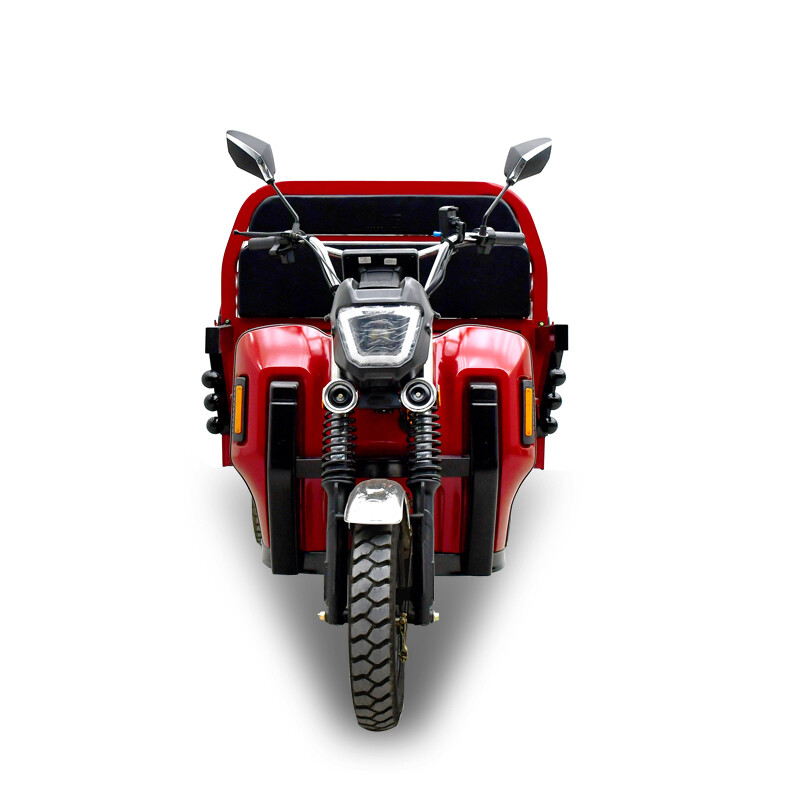

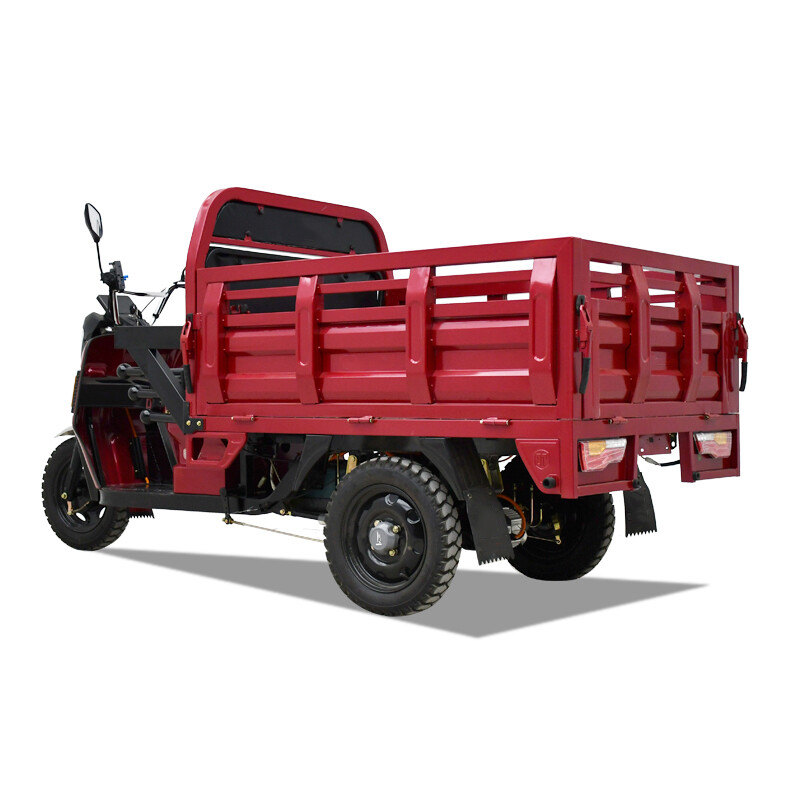

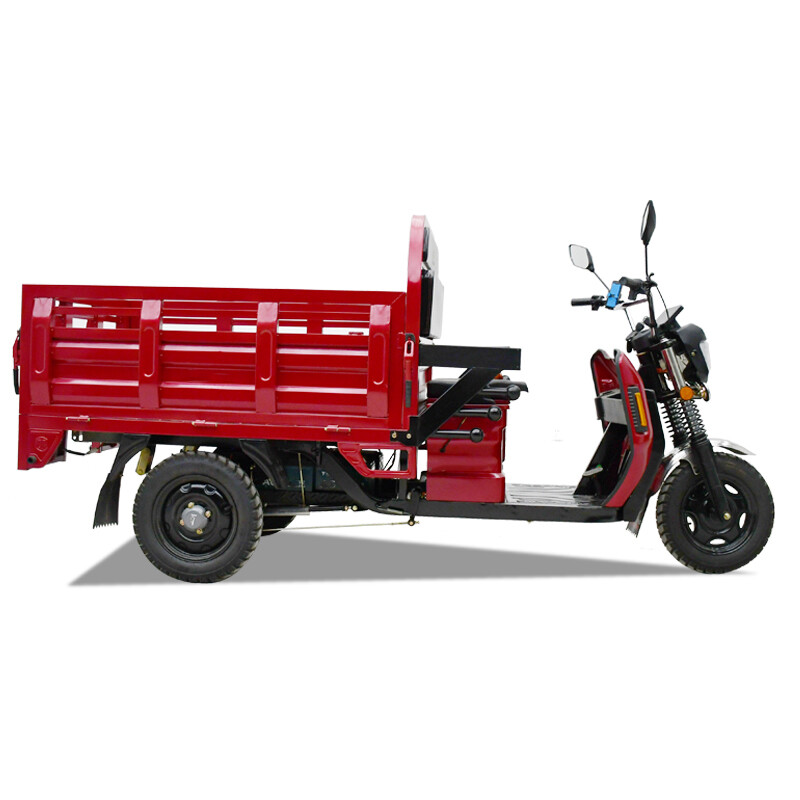

2000W Large Load Electric Tricycle

Product overview

Short Specification

Optional colors	red, blue, green, yellow, grey, silver	red, blue, green, yellow, grey, silver
L×W×H(mm)	2985×1180×1360	2985×1180×1360
Cargo Box size(mm)	1500×1100×490	1500×1100×490
Wheel base(mm)	2030	2030
Wheel track(mm)	950	950
Minimum ground clearance（mm）	≥150	≥150
Minimum turning radius（m）	≤4	≤4
Curb weight(kg)	245	245
Rated load (kg)	500	400
Max speed（km/h）	42	30
Grade ability（%）	≤30	≤20
Battery	72V80AH-100AH	60V45AH-100AH
Motor, Controller（w）	72V2000W	60V1000W
Range per charging（km）	80-110	50-110
Charging time（h）	6～8h	6～8h
Front shock absorber	φ43 Disc shock absorber	φ43 Disc shock absorber
Rear shock absorber	50×120 seven pieces leaf spring	50×120 seven pieces leaf spring
Front/Rear tyre	110/90-16/4.00-12	3.75-12/3.75-12
Rim type	Front:Aluminium/Rear:Steel	steel
Front/Rear brake type	Front:Disc/Rear:Drum	Front/Rear:Drum
Parking brake	Hand brake	Hand brake
Rear axle structure	Integrated rear axle	Integrated rear axle
Vehicle lamps	Normal light (12V)	Normal light (48V)
SKD	40Units/40HQ 12 Units/20GP	50Units/40HQ 15 Units/20GP
SKD(Steel Frame)	32 Units/40HQ 12 Units/20GP	32 Units/40HQ 12 Units/20G
