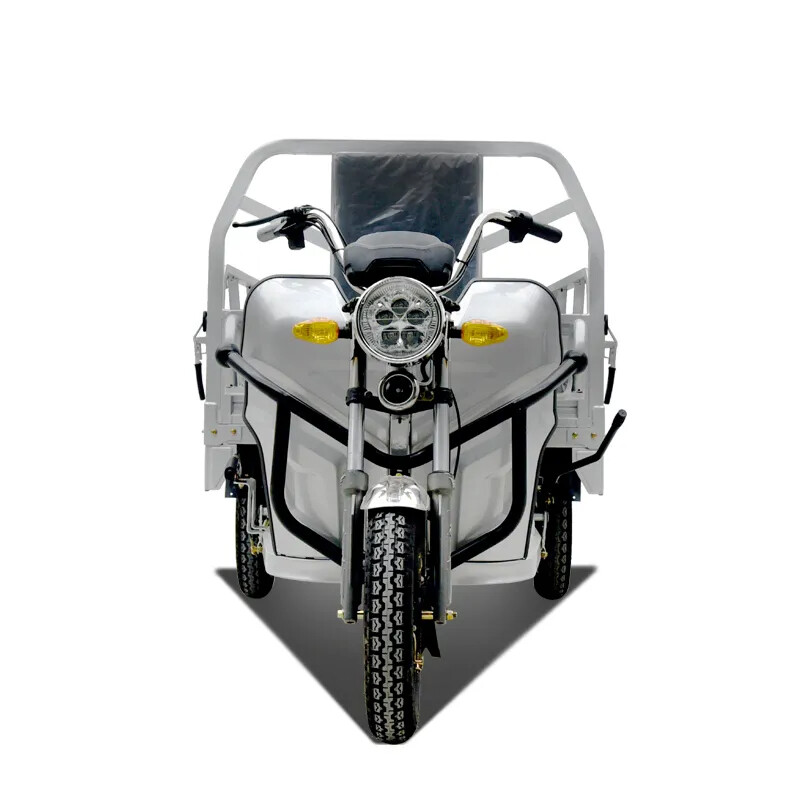

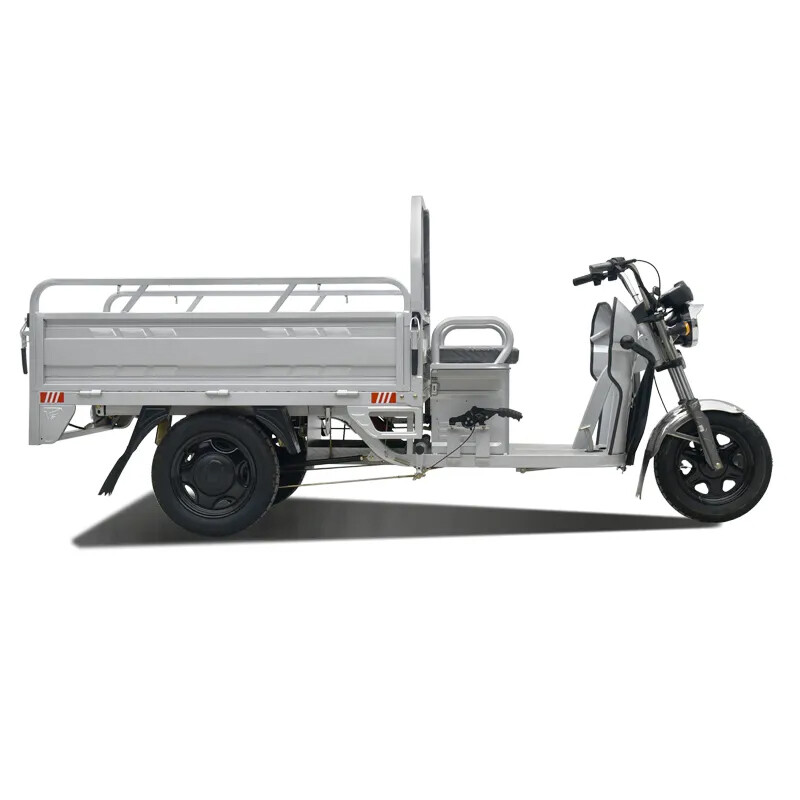

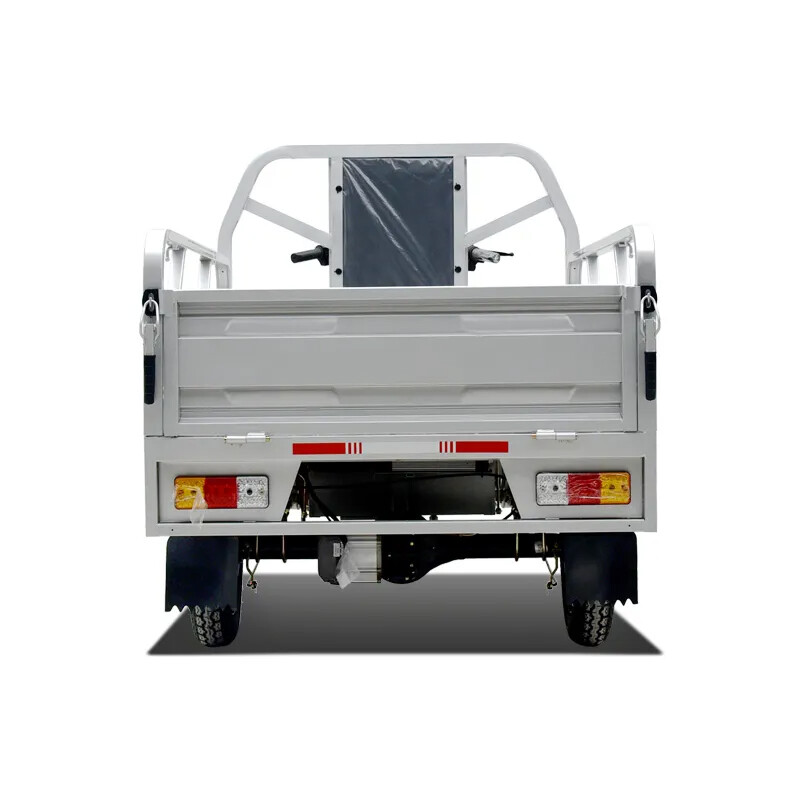

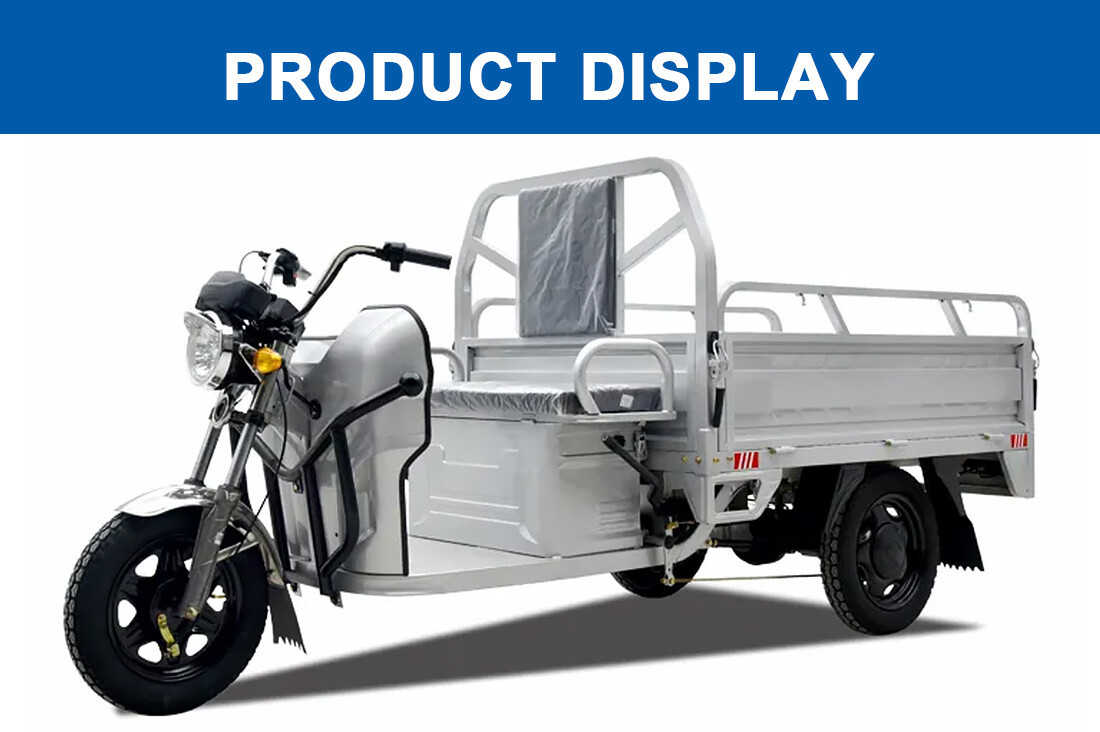

Cheap Price Drum Brake Cargo Electric Trike

Product overview

Short Specification

Optional colors	red, blue, green, yellow, grey, silver	red, blue, green, yellow, grey, silver
L×W×H(mm)	2900×1130×1325	2900×1130×1325
Cargo Box size(mm)	1500×1050×300	1500×1050×300
Wheel base(mm)	1980	1980
Wheel track(mm)	870	870
Minimum ground clearance（mm）	≥150	≥150
Minimum turning radius（m）	≤4	≤4
Curb weight(kg)	200	200
Rated load (kg)	200	200
Max speed（km/h）	30	30
Grade ability（%）	≤15	≤15
Battery	60V45AH-58AH	60V45AH-58AH
Motor, Controller（w）	60V1000W	60V1200W
Range per charging（km）	50-70	50-70
Charging time（h）	6～8h	6～8h
Front shock absorber	φ33 Drum shock absorber	φ33 Drum shock absorber
Rear shock absorber	50×85 four pieces leaf sprig	50×85 four pieces leaf sprig
Front/Rear tyre	3.5-12/3.75-12	3.5-12/3.75-12
Rim type	steel	steel
Front/Rear brake type	Front/Rear:Drum	Front/Rear:Drum
Parking brake	Hand brake	Hand brake
Rear axle structure	Integrated rear axle	Integrated rear axle
Vehicle lamps	Normal light (48V)	Normal light (48V)
CKD	68 Units/40HQ 56 Units（With shed）/40HQ	68 Units/40HQ 56 Units（With shed）/40HQ
SKD(Steel Frame)	50 Units/40HQ 40 Units（With shed）/40HQ	50 Units/40HQ 40 Units（With shed）/40HQ
