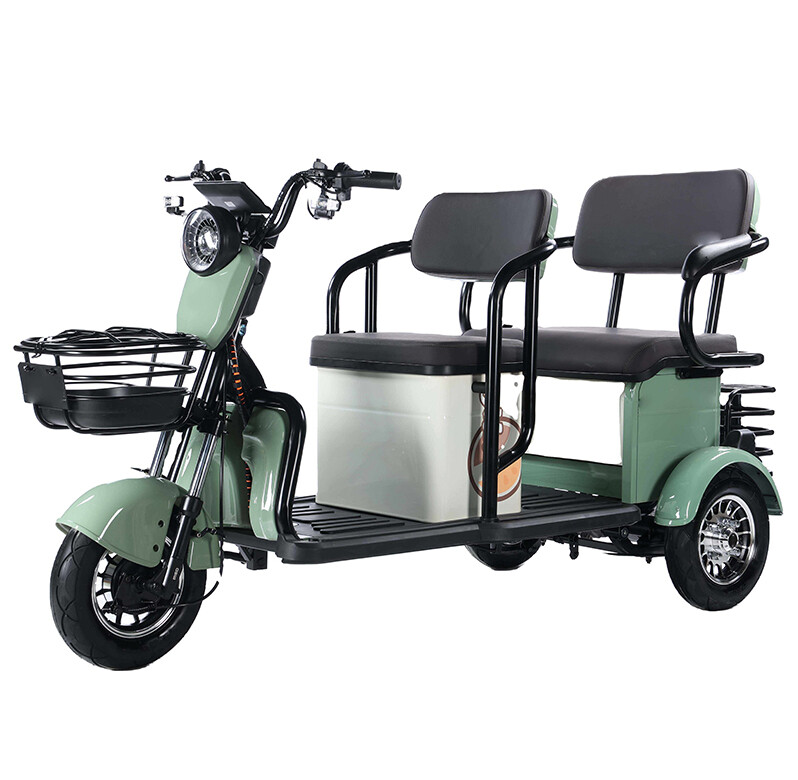

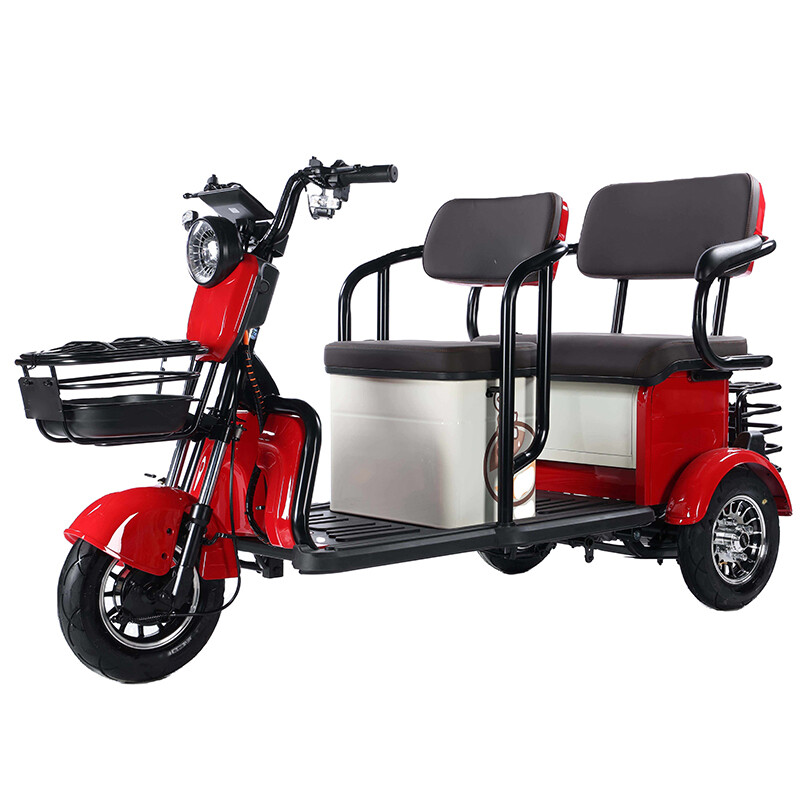

2passengers Elderly Scooter Electric Tricycle

Product overview

Specification

Optional colors	Red Blue Brown Yellow Grey
L×W×H(mm)	2200×970×1440
Wheelbase(mm)	1500
Wheel track(mm)	862
Minumum ground clearance(mm)	≥120
Front turning angle	2.3
Curb weight(kg)	110
Max speed(km/h)	28km/h
Max slope of climb(%)	≤12
Battery	Maximum60V32Ah
Motor, electric power control(w)	48/60V650W
Driving mileage at efficient speed(km)	55-60
Charging time(h)	6～8h
Loading capacity	1driver+2passenger
Front shock absorber	φ31Hydraulic shock absorption
Rear shock absorber	Spring ahock absorber
Front/Rear tyre	Front 3.00-10 Rea r 3.00-10
Rim type	Aluminum wheel
Front/Rear brake type	Front and rear drum brake
Parking brake	Handbrake
Rear axle structure	Split Rear axle
Seat	Foam seat
Vehicle lamps	Normal light（48V）
SKD	47Units/40HQ 18 Units/20GP
SKD（ with shed）	47Units/40HQ 18 Units/20GP
