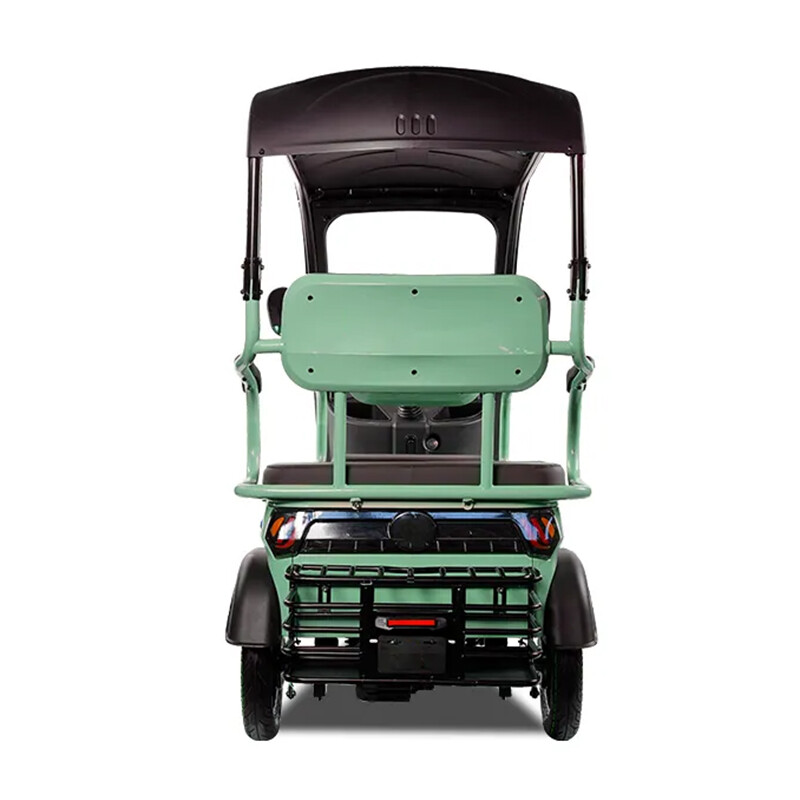

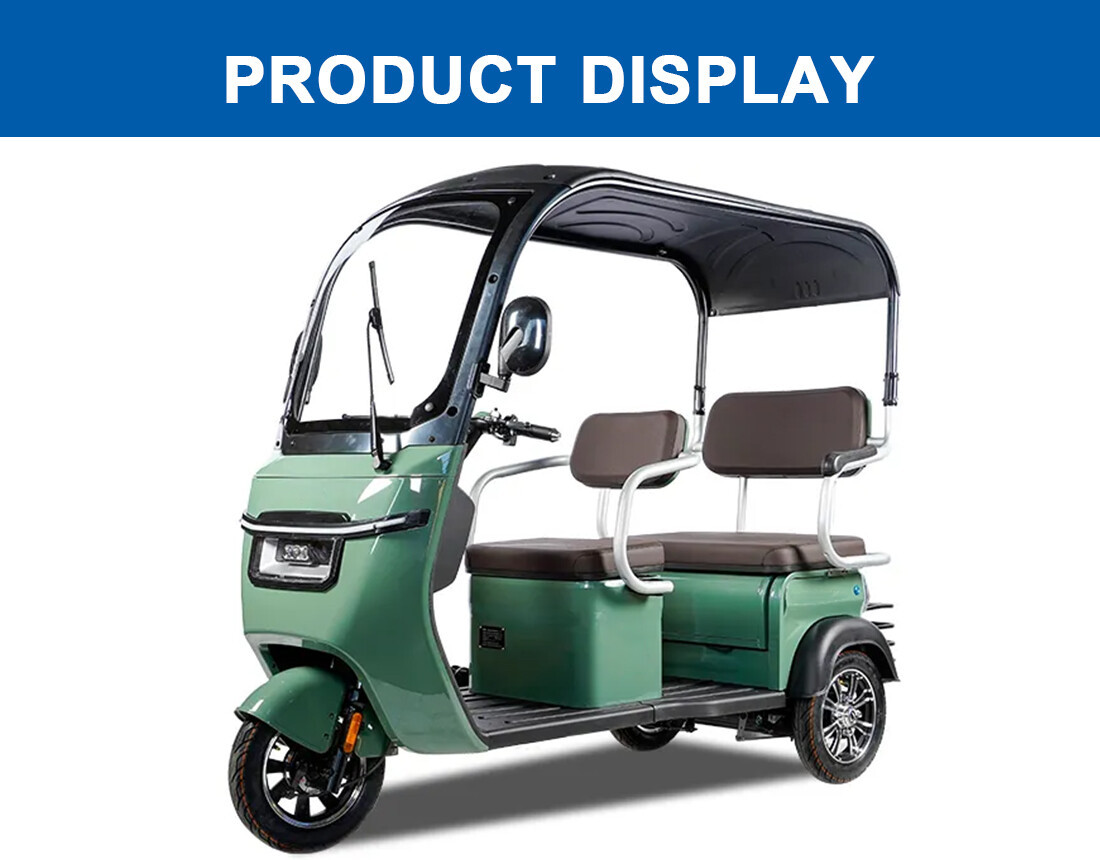

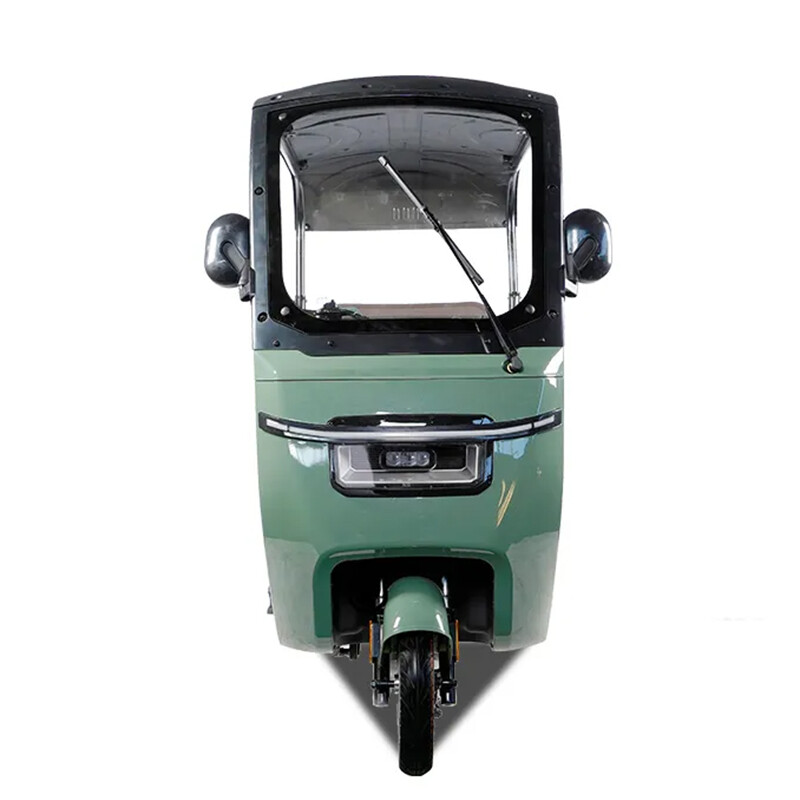

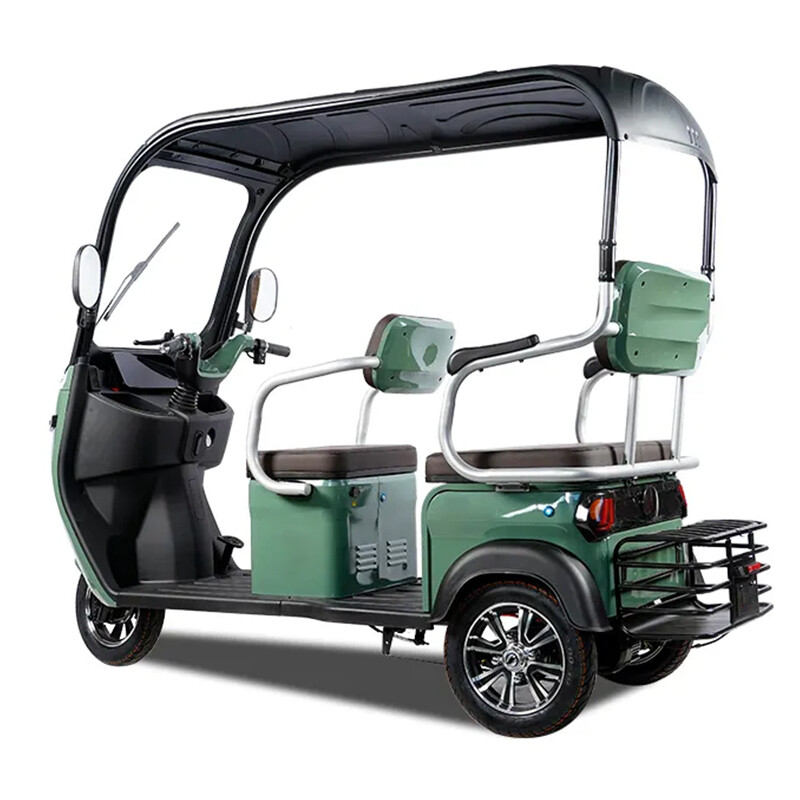

Electric Passenger Tricycle with Roof

Product overview

Specification

L×W×H(mm)	2250×910×1710
Wheelbase(mm)	1600
Wheel track(mm)	760
Minumum ground clearance(mm)	≥120
Minimum turning radius(m)	≤2.5
Curb weight(kg)	130
Max speed(km/h)	25~28km/h
Max slope of climb(%)	≤15
Battery	Maximum60V32AH
Motor, electric power control(w)	60V800W
Driving mileage at efficient speed(km)	45-65
Charging time(h)	6～8h
loading capacity	1driver+2passenger
Front shock absorber	φ31Hydraulic shock absorption
Rear shock absorber	Spring ahock absorber
Front/Rear tyre	Front 3.00-10 Rear 3.00-10
Rim type	Aluminum wheel
Front/Rear brake type	Front and rear drum brake
Parking brake	Handbrake
SKD/carton	39Units: 40HQ 12Units: 20GP
